1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet

Place of Origin : wuhan, China

Packaging Details : Pack the air shower in a wooden case, then put the wooden case into a container.

Supply Ability : 50 Set/Sets per Month

Price : $2,000.00/sets 1-4 sets

Brand Name : OEM

MOQ : 1Pcs

Payment Terms : T/T, L/C

Delivery Time : 15 work day

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Hospital, Electronics factory, Chemical Labs

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Voltage : 220V/380V (Can be customized)

Power : 1.1KW

Dimension(L*W*H) : customize

Weight : 300 KG

Warranty : 12 Months

Material : SS/SUS304

Inner Dimension(mm) : customize

Nozzle : customize

Nozzle Material : Stainless Steel

Diameter of Nozzle Mouth : 30mm

Air Velocity at the Nozzle : ≥25m/s

Pre-filter : customize

HEPA filter : customize

Efficiency : ≥99.995%

Shower Time : 0-99s adjustable

Contact Now

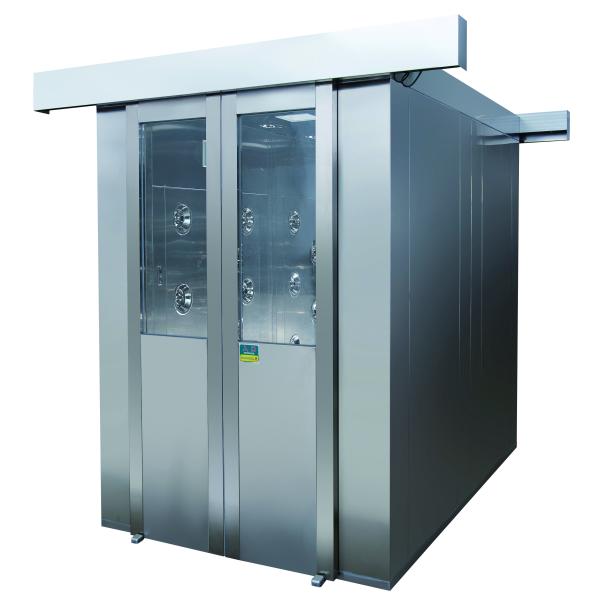

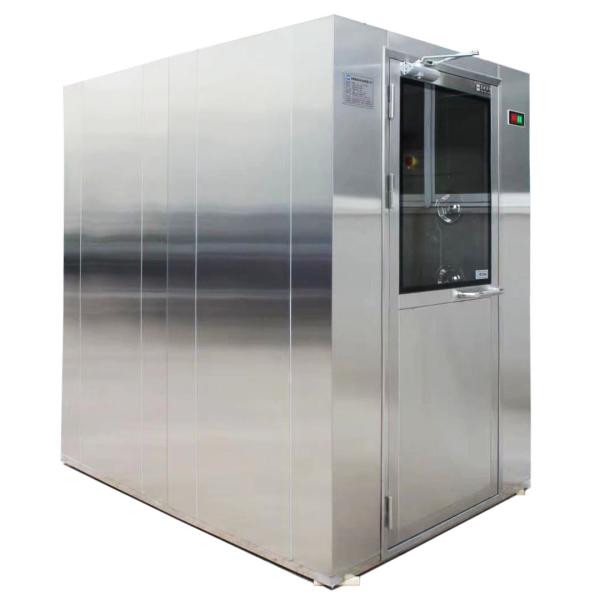

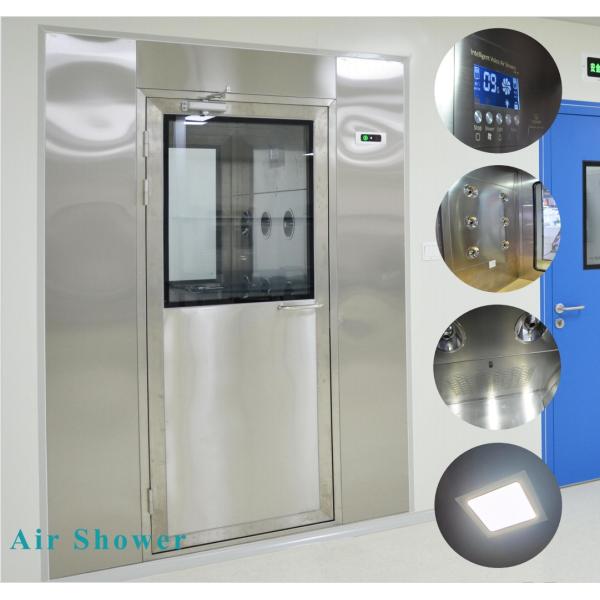

Clean Air Full Stainless Steel Double Automatic Door Air Shower Room

Product Overview

Full Stainless Steel Air Shower Room Customized for Clean Room with CE/GMP/ISO

CleanRoom air shower adopts pre-filter and HEPA filtration system, filtration efficiency reaches 99.995%, matched with multiple perspectives and adjustable stainless steel nozzle & big air volume low noise fan. Air velocity can reach 25m/s from air outlet and 18m/s to human body.

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet

Specification:

Model	TD-AS/AL-①L	TD-AS/AL-②L	TD-AS/AL-③L	TD-AS/AL-④L
Filter Efficiency	≥99.99%(@≥0.3μm)
Air Velocity	≥20 m/s(4920fpm)
Showering Time	0~99 s (Adjustable)
Num.of Nozzle	18 pcs	36 pcs	54 pcs	72 pcs
Power Supply	AC380V, 3Φ, 50Hz
Rated Power	1100 w	2200w	3300w	4400w
Body	High grade steel with ivory color static powder coating
Floor	Stainless steel bottom plate
Door	Aluminum alloy with tempered glass
Overall Dim.(WXDXH)	150010002150 mm	150020002150 mm	150030002150 mm	150040002150 mm
Dim. Of Showering Area(W1XD1XH1)	8009002000 mm	80019002000 mm	80029002000 mm	80039002000 mm
Weight	500 kg	1000kg	1500kg	2000kg

Features:
1. High-Speed Air Jets: Equipped with powerful air blowers that generate high-speed jets of clean air to effectively remove contaminants from the surface of personnel and objects.
2. Air Filtration System: Incorporates advanced filtration systems to ensure the quality and cleanliness of the air used for the air shower.
3. Stainless Steel Construction: Commonly made of stainless steel for durability, corrosion resistance, and ease of sanitization.
4. Electronic Controls: Features intuitive electronic control panels for easy operation and adjustment of parameters such as air flow speed and duration.
5. Two-Way Air Flow: Some models have a two-way air flow design to provide thorough cleaning from all directions.
6. Illumination: Fitted with adequate lighting to ensure good visibility inside the air shower.
7. Interlocking Doors: The entry and exit doors are interlocked to prevent simultaneous opening and maintain the integrity of the cleanroom environment.

Applications:
1. Electronics Industry: To remove dust and particles from workers and materials before entering cleanrooms where electronic components are manufactured.
2. Pharmaceutical Manufacturing: For sanitizing personnel and equipment before entering production areas to maintain sterility.
3. Biotechnology and Laboratories: To ensure the cleanliness of researchers and samples before entering controlled environments.
4. Food Processing: In food production facilities to prevent the introduction of contaminants.
5. Semiconductor Fabrication: To keep the cleanroom environment pure during the production of semiconductor chips.

Advantages:
1. Enhanced Cleanliness: Significantly reduces the amount of contaminants carried into the cleanroom, improving the overall cleanliness level.
2. Protection of Products: Helps protect sensitive products from contamination, ensuring quality and reliability.
3. Disease Prevention: Minimizes the risk of cross-contamination and the spread of diseases in controlled environments.
4. User-Friendly: Simple and quick to use, causing minimal disruption to the workflow.
5. Long-Term Cost Savings: By maintaining a clean environment, it reduces the likelihood of product defects and rework, saving costs in the long run.
